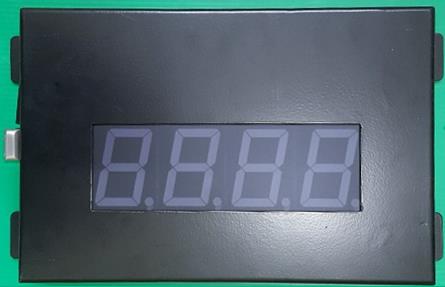

JD4 Display Unit
Descriptions
JD4는 4 Inch Data Display Unit으로 각종 Instrument 또는 System으로부터 Serial Communication으로 전송되는 신호를 표시하는 장치로 JBUS(Modbus) Protocol을 사용하여 호환성이 높은 Digital Data Display Unit입니다.
DIP S/W에 의한 Address 또는 Analog Input Range 설정으로 외부에서 전송된 신호를 표시할 수 있습니다. 또한 Option으로 4~20mA, 1~5VDC 등 계측 표준 신호를 입력 할 수 있습니다.
Specifications
Data Display
- Data processor
- Serial Communication
- CRC16 Error Check
- 16 bits AD Input
- 4” Red LED Display Unit
Mechanical
- Dimension : 400(W)*250(H)*80(D) ( 3 Digit )
500(W)*250(H)*80(D) ( 4 Digit )
600(W)*250(H)*80(D) ( 5 Digit )
- Material : SUS304 1.5t Wall-Mounted
- Finished Color : Black, Powder Coating
- Ingress Protection : IP54
Environmental
- Input Power Range : AC110 or 220V 60Hz
- Operating Temperature : 0℃ to +50℃
- Storage Temperature : -10℃ to +85℃
