Descriptions

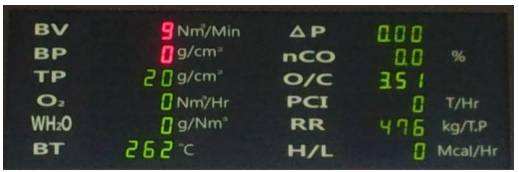

Smart Indicator System은 고로 공장의 주상에 설치되어 주상 작업에 필수적인 주요 조업지수 Data를
On-line Real time으로 표시하는 장치로, Level 2 전산서버 또는 DCS Serial 통신을 통해 전송되는 Data 및
문자 메세지를 Microprocessor에서 수신 후 Data Display 통해 빠르고 정확한 정보를 운전자에게 제공한다.
Specifications
Display Module : LDM, RGB Full Color or 고휘도 LED FND
컨트롤러 : Embedded 전용 프로세스 컨트롤러
통신 : Ethernet or Serial
Protocol ( 산업용 표준 프로토콜 )
Power Supply :
Input : 80~265VAC 60Hz
Output : 5VDC, 70A, 2개
Operation Temperature : -10 to 60℃
SMART INDICATOR PANEL 외관 사양 :
Size (mm): Order Code 참조
Material : SS41, 2.3t
Color : Black, 분체도장, 자립형, 후면 오픈형
기타 : 1) Indicator는 부식성 Gas에 강한 코팅 실시
2) Panel은 분진 침투 방지형으로 설계
3) Indicator 취외, 취부는 Panel 후면 Base형으로 설계
4) Maintenance tools 제공 (Indicator 조정용)
5) Indicator 제어회로 및 Layout 도면 제출

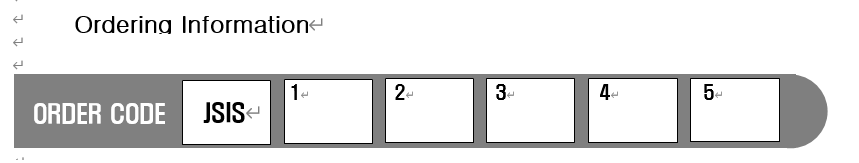

JSIS : Smart Indicator System Base Code
1. FND Size : 2.3, 3, 4, 6, 8 ( inch )
2. FND Data 수량 : n
3. Led Dot-Matrix Module ( 256 * 128, 32 * 16 Pixels ) 수량 : n
4. 통신 Type : S : Serial Modbus RTU
E : Ethernet
5. Panel Size : 가로/세로/높이 ( 단위 mm )
A : 4000 / 2850 / 500
B : 3600 / 2500 / 500
C : 3000 / 2000 / 450
D : 2500 / 1500 / 400

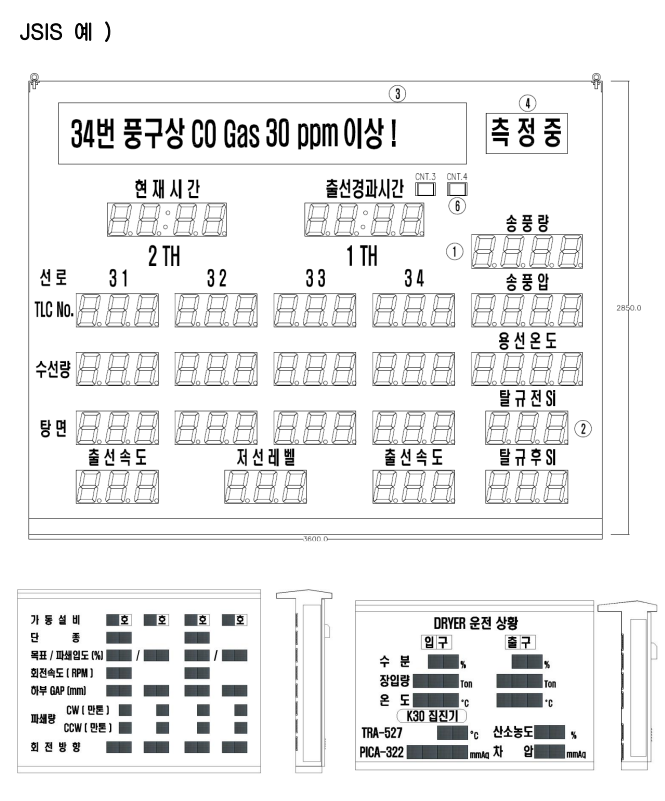

Example :
JSIS-4-5-0-S-D : Serial 통신 4” FND Display 5 Data, Indicator Panel
( 외함 : 2500*1500*400 )
JSIS-6-12-5-E-C : Ethernet 통신 6” FND Display 12 Data, 5 LDM 문자표시 Indicator Panel
( 외함 : 3000*2000*450 )
JSIS-8-22-12-S-A : Serial 통신 8” FND Display 22 Data, 12 LDM 문자표시 Indicator Panel
( 외함 : 4000*2850*500 )
